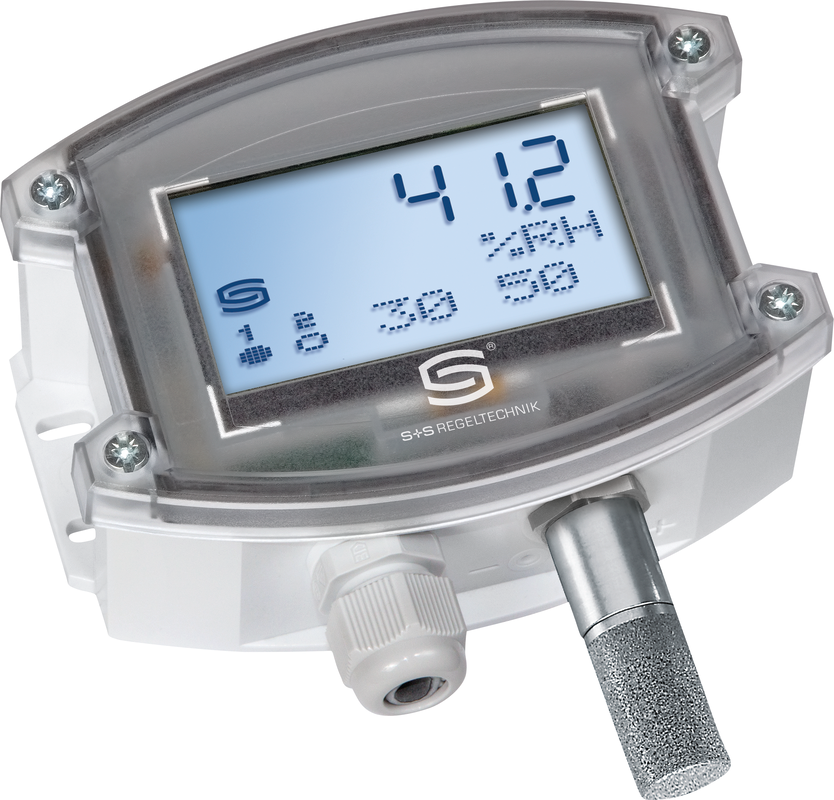

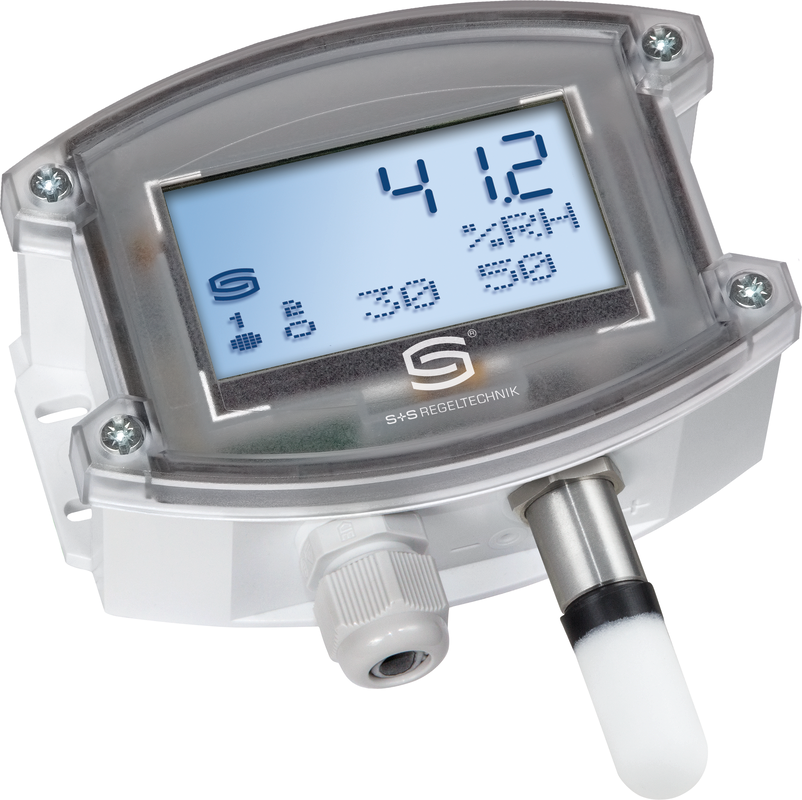

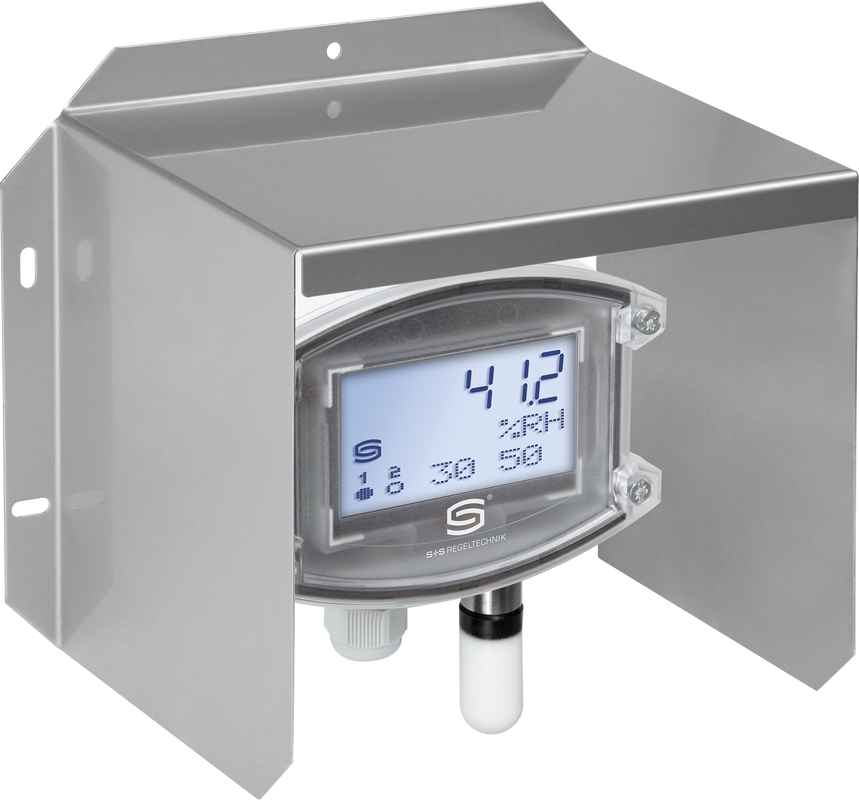

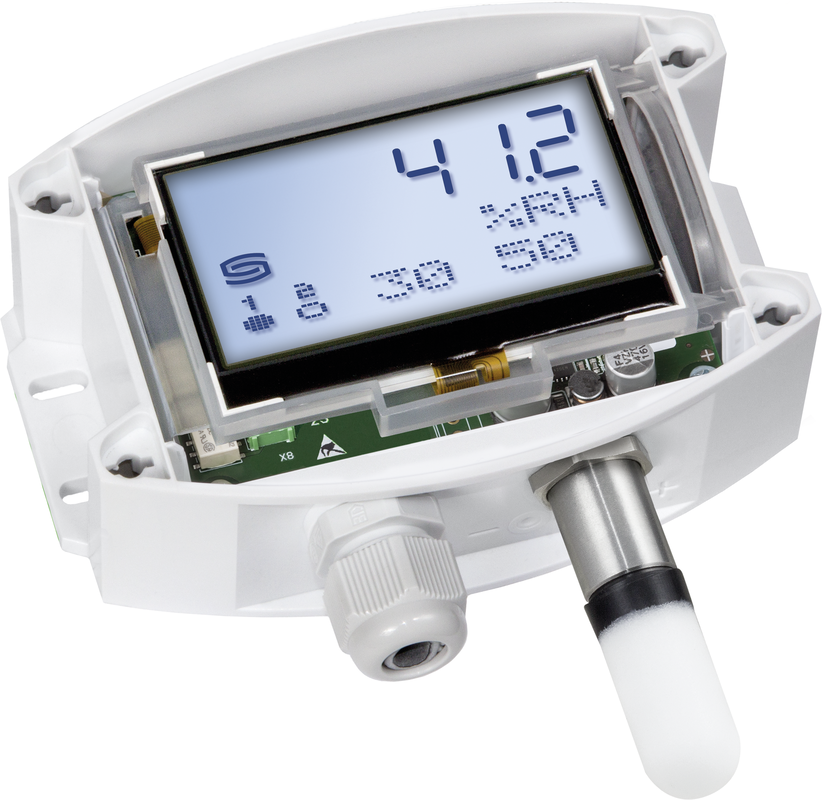

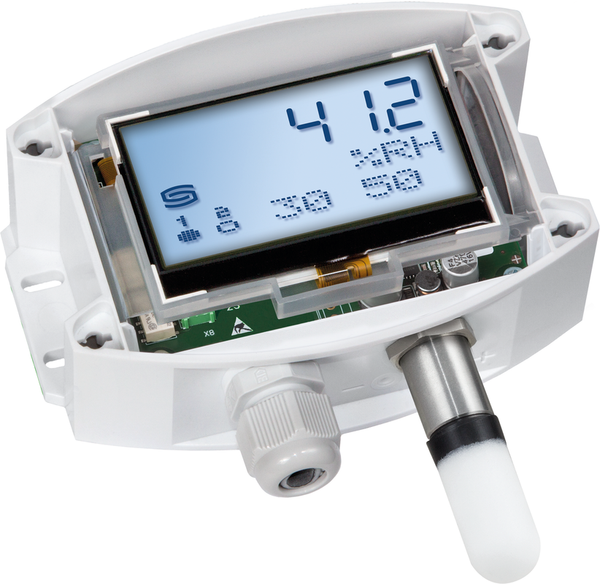

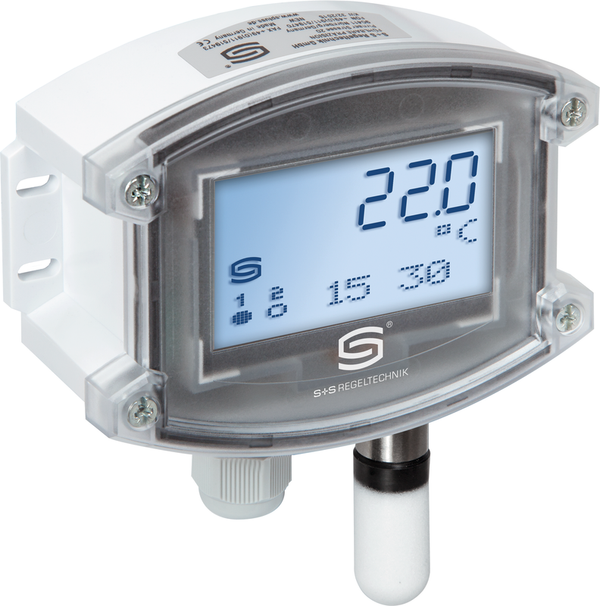

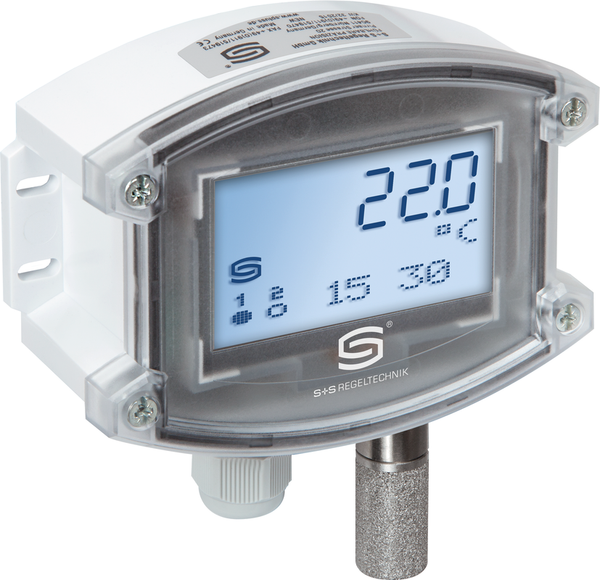

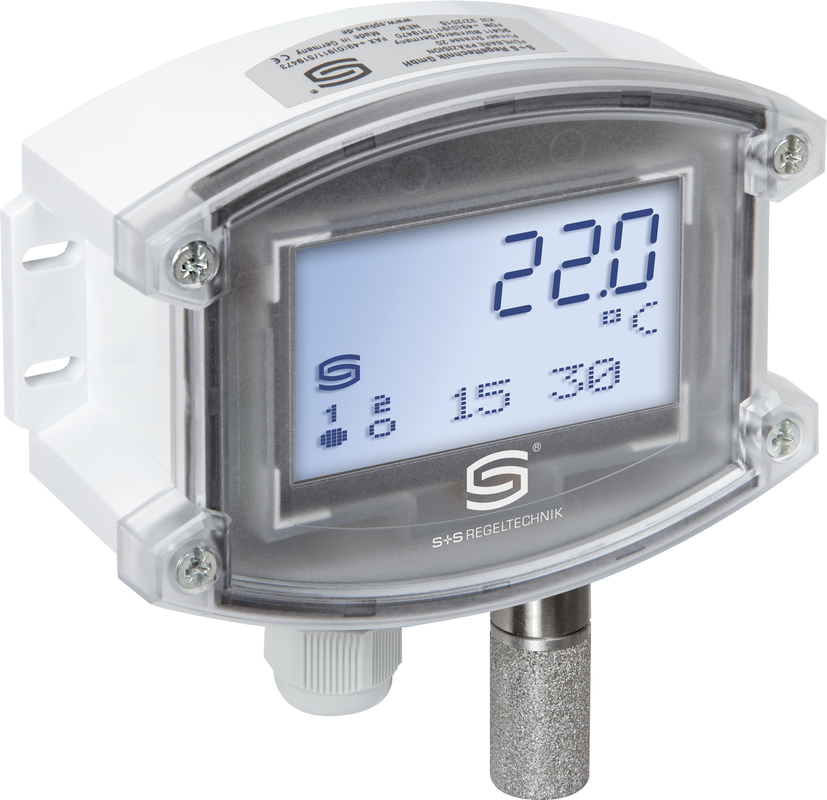

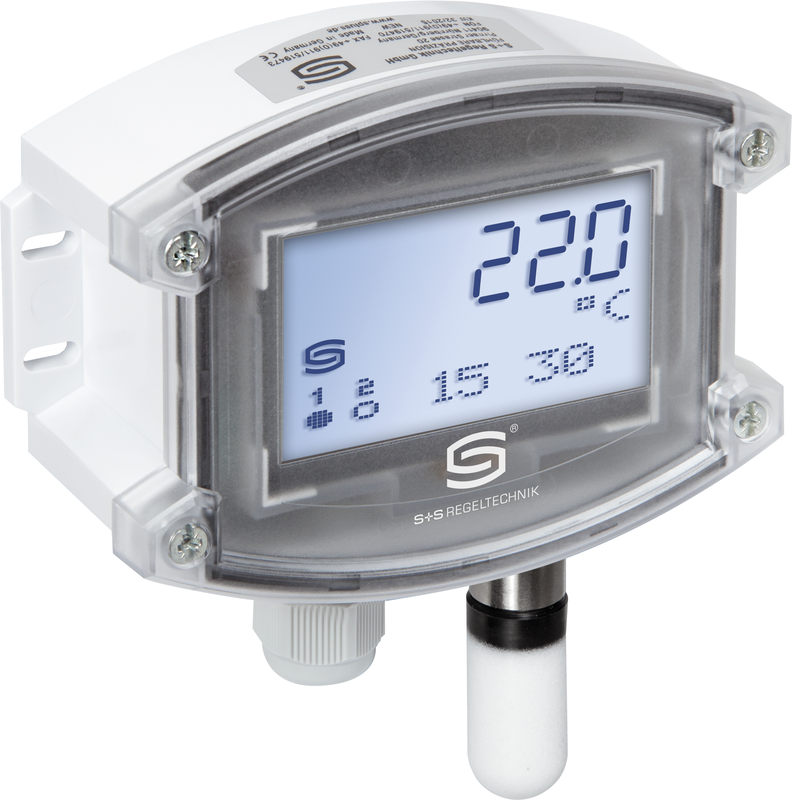

Surface-mounted hygrothermostat HYGRASREG® AHT-30W-U LCD
HYGRASREG® AHT-30W-U LCD
SKU 1202-7127-1421-000
EAN 4 251325 611822
Product group: WG02
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
260,19 €
Regular price
Sale price
260,19 €
Entrega en 3 días a España
5 años de garantía
Solicitar descuento por volumen
Product description
- Setting range:
25...95 % RH (Humidity)
>-35...+35 / -35...+75 / 0...+50 / 0...+80 °C (Temperature) - 0-10V + switching output
- Switching output (contact rating):
2 x changeover 24 V, 1A ohmic load, adjustable separately - Internal setting
- IP65

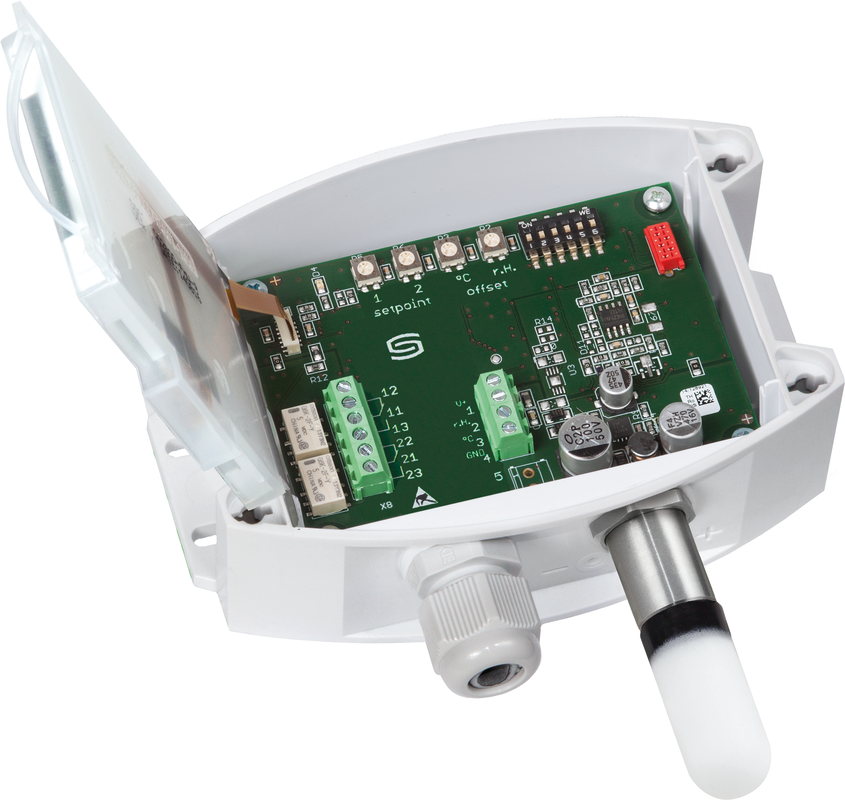

Electronic surface-mounted hygrostat and/or surface-mounted thermostat HYGRASREG® AHT-30 with one continuous and two switching outputs, adjustable switching thresholds and display for indicating the actual humidity and/or actual temperature (accuracy class ± 2.0 % RH). The setpoints can be assigned to the relative humidity and/or temperature.
The device is suitable for controlling and monitoring relative humidity (humidification and dehumidification) and/or temperature (heating and cooling), e.g. in laboratories, production rooms, climatic chambers, swimming pools, greenhouses, etc., for controlling humidification and dehumidification equipment or for heating control. The measuring transducer is designed for the exact recording of humidity/temperature. The AHT30 uses a digital, long-term stable sensor as the measuring element. It is used in dust-free, pollutant-free, non-aggressive air.
The device is suitable for controlling and monitoring relative humidity (humidification and dehumidification) and/or temperature (heating and cooling), e.g. in laboratories, production rooms, climatic chambers, swimming pools, greenhouses, etc., for controlling humidification and dehumidification equipment or for heating control. The measuring transducer is designed for the exact recording of humidity/temperature. The AHT30 uses a digital, long-term stable sensor as the measuring element. It is used in dust-free, pollutant-free, non-aggressive air.
Technical data
| Measurement | Temperature, relative humidity |
| Power supply | 24 V AC/DC (± 20 %) |
| Output | 0-10V + switching |
| Display | Yes |
| Features | Indoor setting |
| Output | as a potential-free changeover contact (2 x changeover 24 V, 1A ohmic load, independently adjustable, 2 x 0-10 V for the U-variant) |
| Humidity sensor tolerance | 2 % |
