WIRELESS room operating unit (interface) Rymaskon® RYM 1302-THCV-OTS-WM-SM-B

The room controller devices of the Rymaskon® 1000 series are designed for controlling residential, hotel, and office rooms and individually regulate the indoor heating, cooling, and ventilation stages. The product family stands out for its elegant design, intuitive operation, and the many combination options of the individual components.

The room controller devices Rymaskon® 1000 Interface are used to control temperature, ventilation, solar shading (retractable louver shutters, blinds) or lighting (with dimming function). The room controller devices provide the setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus of the BMS. Visual indication is provided by a 2" TFT display; operation is via capacitive keys (Touchkeys). Communication is available either wired via Modbus (RTU) / BACnet (MS/TP) or radio-based/wireless via W-Modbus (RTU) / W-BACnet (MS/TP).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input is provided for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This allows, for example, a window contact or a condensation monitor to be connected. As a result, all options are available to flexibly and individually condition rooms.

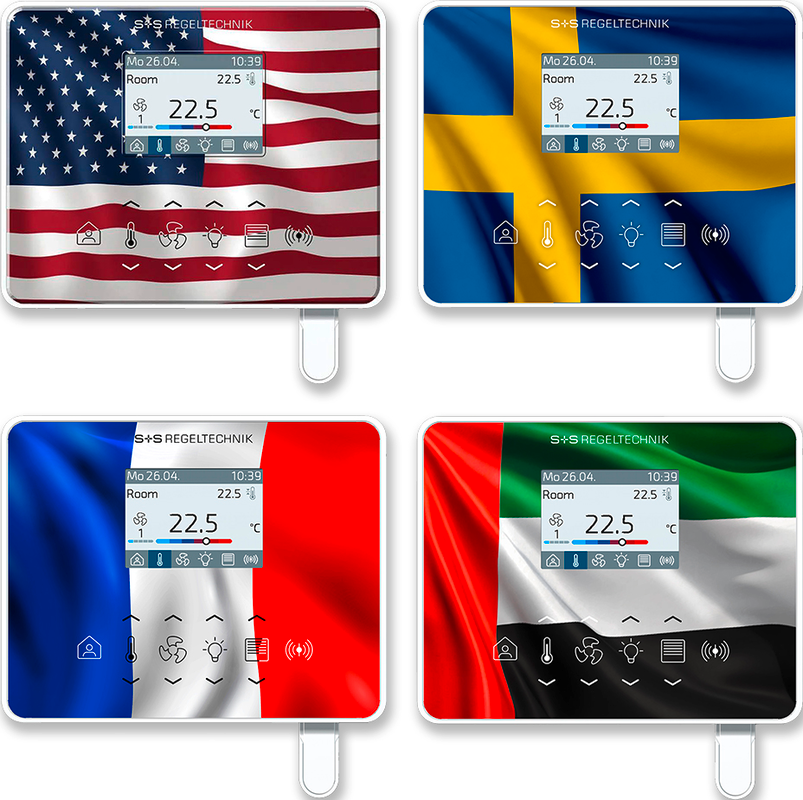

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mount boxes or surface-mounted boxes.
