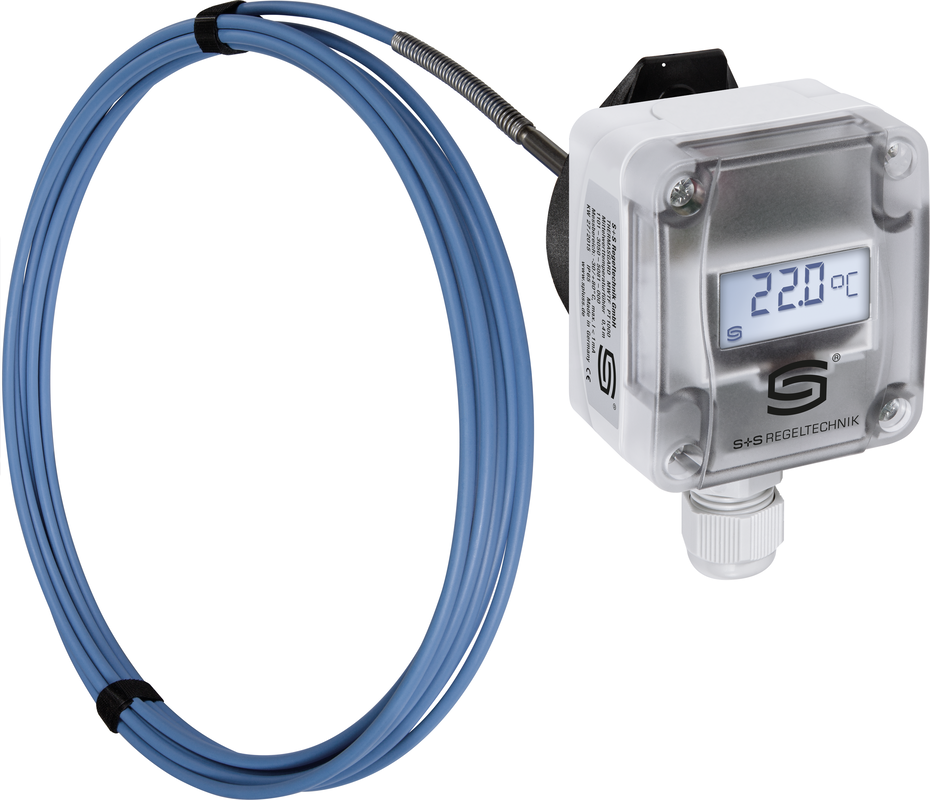

Mean value temperature transducer / rod sensor THERMASGARD® MWTM-A 6m LCD
THERMASGARD® MWTM-A 6m LCD
SKU 1101-313E-1269-900
EAN 4 251325 648309
Product group: WG01
Pre-order:
Currently not available
Shipping calculated at checkout.
Regular price
353,23 €
Regular price
Sale price
353,23 €
Entrega en 3 días a España
5 años de garantía
Solicitar descuento por volumen
Product description
- - 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
- Rod length: 6.0 m
- Duct sensor
- AOS - automatic 0 -10 V/ 4...20 mA
- IP65
Calibratable mean value temperature measuring transducer THERMASGARD® MWTM (rod sensor) with eight switchable measuring ranges, continuous output, flexible, fully active sensor rod and protection tube made of copper with plastic coating (robust design), housing made of impact-resistant plastic, housing cover with quick-locking screws.
The sensor is used to detect the average temperature (mean value) in gaseous media, e.g. as a duct temperature sensor in ventilation and air conditioning ducts over the entire cross-section or over a defined length (installed in a meandering pattern, it detects the applied temperature evenly). The rod sensor is available in lengths of 0.4...20 m and is supplied with a mounting flange as standard. Mounting clamps MK-05-M (accessory) are available for professional mounting of the rod. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The sensor is used to detect the average temperature (mean value) in gaseous media, e.g. as a duct temperature sensor in ventilation and air conditioning ducts over the entire cross-section or over a defined length (installed in a meandering pattern, it detects the applied temperature evenly). The rod sensor is available in lengths of 0.4...20 m and is supplied with a mounting flange as standard. Mounting clamps MK-05-M (accessory) are available for professional mounting of the rod. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Application / Installation | Averaging sensor |
| Measured variables | Temperature |
| Communication | - |
| Output | 0-10V / 4..20mA |
| Rod length | 6.0 m |
| Display | Yes |
| IP protection rating | IP65 |
| Output variant | Cable gland connection |
| Measuring range | – 20...+ 150 °C / – 50... + 50 °C / – 20... + 80 °C / – 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0... + 100 °C / 0... + 150 °C |
| Features | none |
| Output | Automatic Output Switching: The device automatically detects the required output type 0 -10 V or 4...20 mA |
| Output | AOS - automatic 0 -10 V / 4...20 mA |
