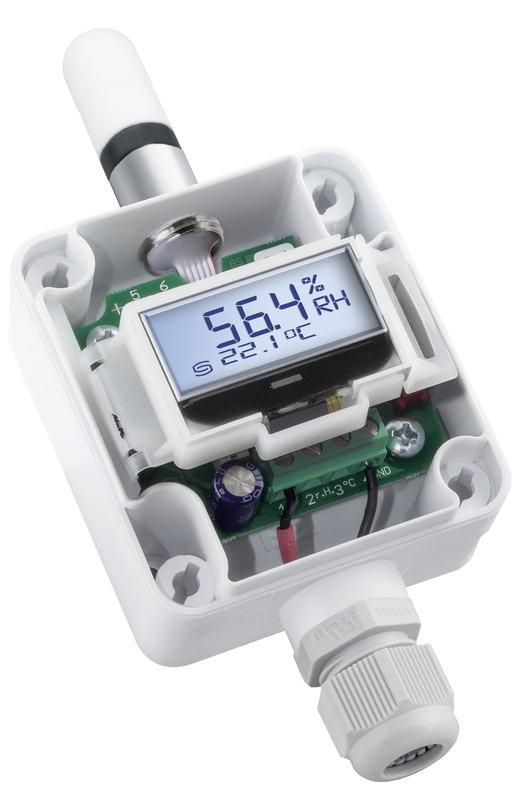

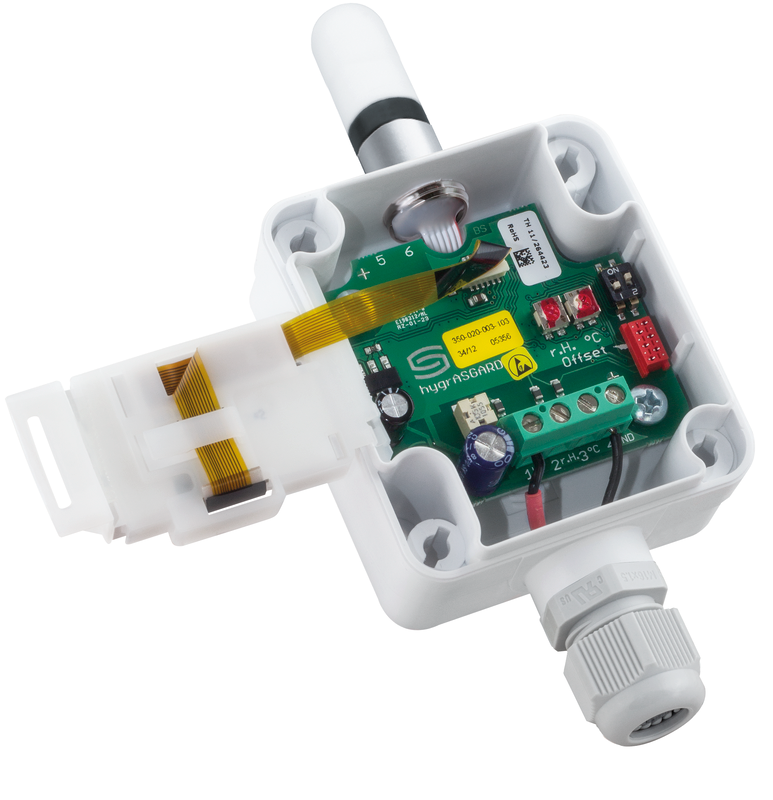

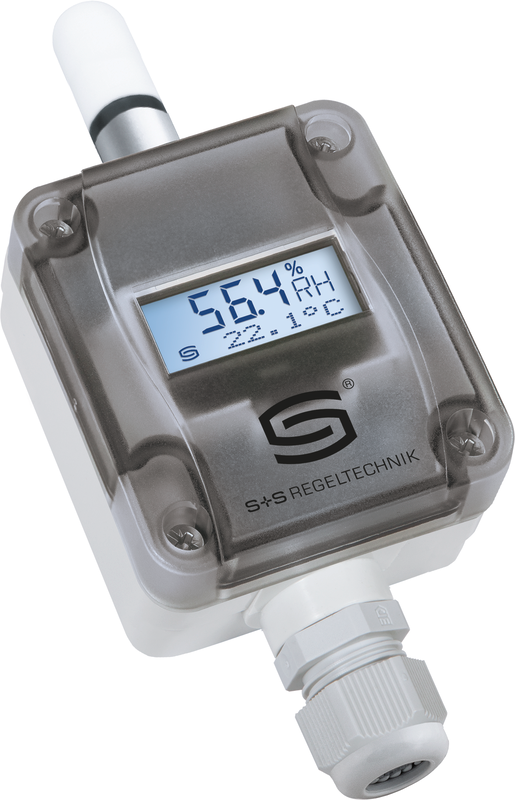

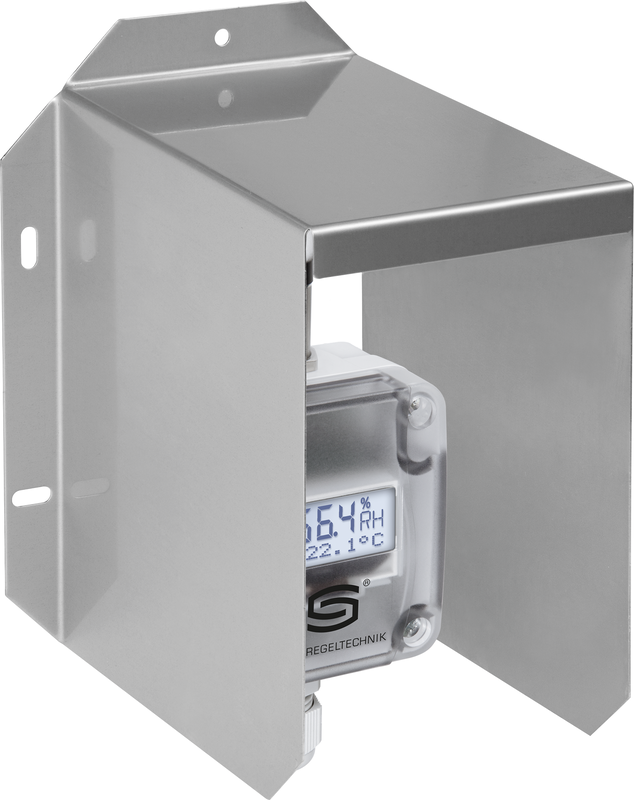

On-wall humidity sensor / outdoor humidity sensor HYGRASGARD® AFF-SD-I LCD
HYGRASGARD® AFF-SD-I LCD
SKU 1201-1122-0200-000
EAN 4 251325 610016
Product group: WG01
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
255,65 €
Regular price
Sale price
255,65 €
Entrega en 3 días a España
5 años de garantía
Solicitar descuento por volumen
Product description
- 0...100 % RH
- Measurement accuracy: ± 2 %
- relative humidity [% RH]
- 4...20 mA
- IP 65
Quality product for the HVAC sector, accuracy 2 % RH
The calibratable outdoor humidity/temperature sensor HYGRASGARD® AFF - SD / AFTF-SD measures the relative humidity and/or temperature of the air. It converts the measured variable into a standard signal of 0-10 V or 4...20 mA, is optionally available with/without display, with terminal box housing made of impact-resistant plastic, housing cover with quick-locking screws.
The measuring transducer has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The relative humidity (in % RH) is the quotient of the water vapor partial pressure and the saturation vapor pressure at the respective gas temperature. The device is designed for the exact measurement of humidity and uses a digital, long-term stable sensor as the measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The calibratable outdoor humidity/temperature sensor HYGRASGARD® AFF - SD / AFTF-SD measures the relative humidity and/or temperature of the air. It converts the measured variable into a standard signal of 0-10 V or 4...20 mA, is optionally available with/without display, with terminal box housing made of impact-resistant plastic, housing cover with quick-locking screws.
The measuring transducer has four switchable temperature ranges and is used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The relative humidity (in % RH) is the quotient of the water vapor partial pressure and the saturation vapor pressure at the respective gas temperature. The device is designed for the exact measurement of humidity and uses a digital, long-term stable sensor as the measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measured value | relative humidity |
| Power supply | 15...36 V DC dependent on the load condition, residual ripple stabilized ± 0.3 V |
| Output | 4..20 mA |
| Display | Yes |
| Measured quantity in addition to °C + %RH | none |
| Measuring range | 0...100 % RH |

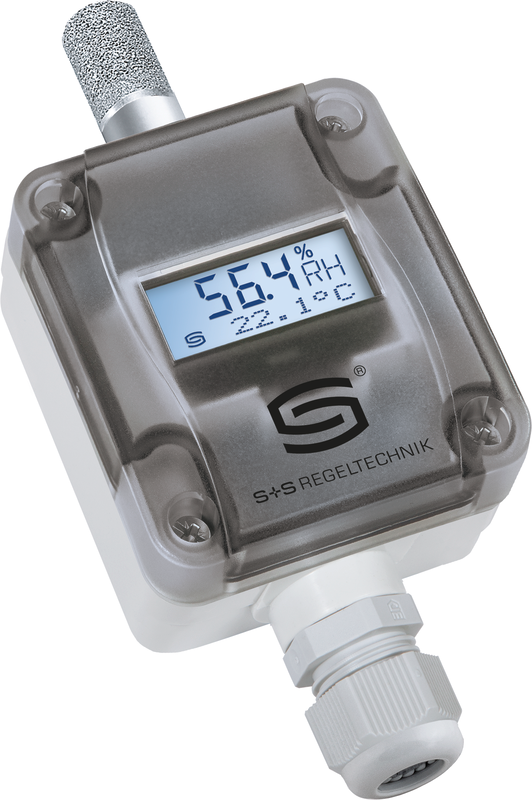

| Equipment | sintered filter, plastic |
| Output | 4...20 mA |
| Humidity sensor tolerance | 2 % |
