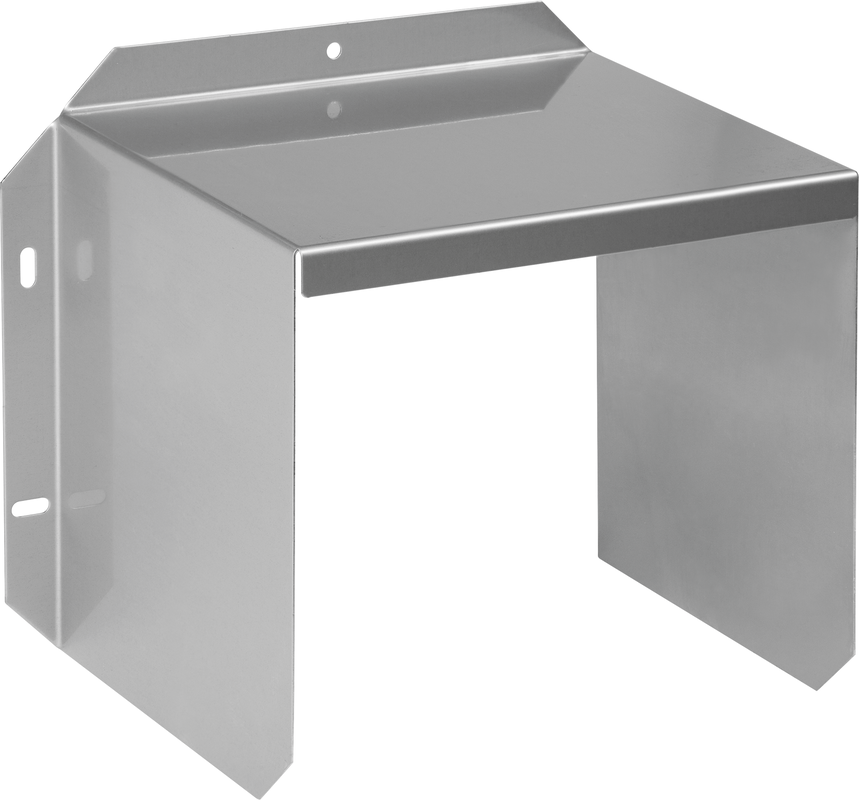

WS-01
Regular price
35,05 €
Regular price
Sale price
35,05 €
%RH
On-wall humidity sensor / outdoor humidity sensor HYGRASGARD® AFF-I
HYGRASGARD® AFF-I
SKU 1201-7112-0000-000
EAN 4 251325 611273
Product group: WG02
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
209,99 €
Regular price
Sale price
209,99 €
Entrega en 3 días a España
5 años de garantía
Solicitar descuento por volumen
Product description
- 0...100 % RH
- relative humidity [% RH]
- 4...20 mA
- IP 65
Calibratable outdoor humidity/temperature transmitter HYGRASGARD® AFF / AFTF (± 2.0 %) as well as cable gland (optional M12 connector according to DIN EN 61076-2-101) and housing made of impact-resistant plastic with quick-locking screws, optionally with⁄without display.
The devices record the relative humidity and⁄or the temperature of the air and convert the measured variables into a standard signal of 0-10 V or 4...20 mA. They have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for precise humidity measurement. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The devices record the relative humidity and⁄or the temperature of the air and convert the measured variables into a standard signal of 0-10 V or 4...20 mA. They have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for precise humidity measurement. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measurement | relative humidity |
| Power supply | 15...36 V DC b-dependent, residual ripple stabilized ± 0.3 V |
| Output | 4..20 mA |
| Display | No |
| Output version | cable gland fitting |
| Additional to °C + %RH measurement size | none |
| Measuring range | 0...100 % RH |
| Equipment | sintered filter, plastic |
| Output | 4...20 mA |
| Humidity sensor tolerance | 2 % |
