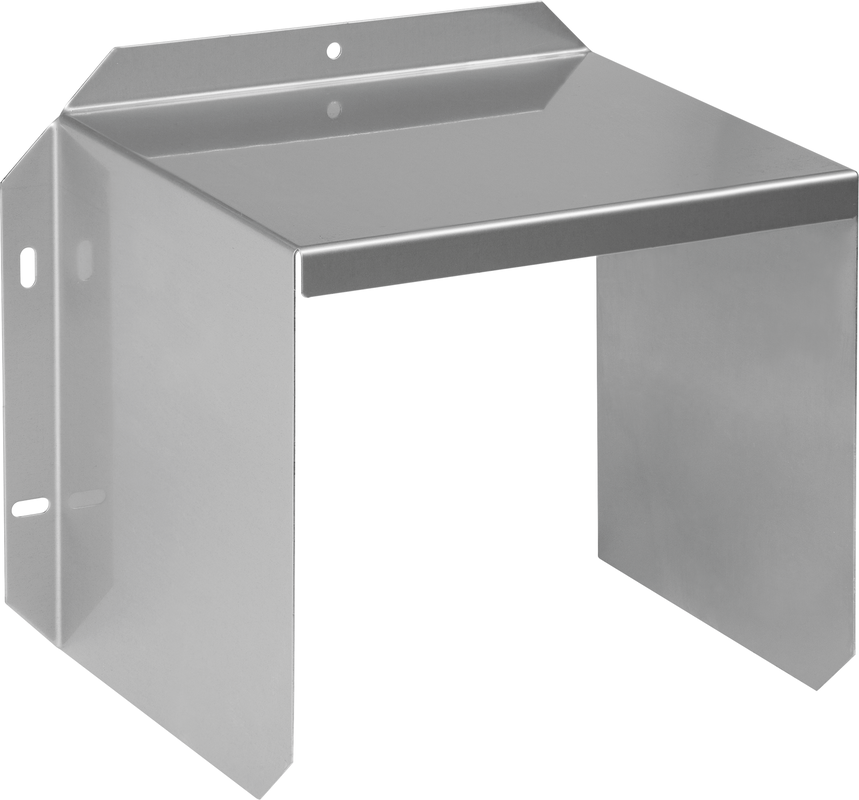

WS-01
Regular price
35,05 €
Regular price
Sale price
35,05 €
°C
%RH
On-wall humidity and temperature sensors HYGRASGARD® AFTF-I
HYGRASGARD® AFTF-I
SKU 1201-7112-1000-000
EAN 4 251325 611310
Product group: WG02
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
230,35 €
Regular price
Sale price
230,35 €
Entrega en 3 días a España
5 años de garantía
Solicitar descuento por volumen
Product description
- –35...+35 / –35...+75 / 0...+50 / 0...+80 °C
0...100 % RH - Temperature [°C], relative humidity [% RH]
- 4...20 mA
- IP 65
Calibratable outdoor humidity/temperature transmitter HYGRASGARD® AFF / AFTF (± 2.0 %) as well as cable gland (optional M12 connector according to DIN EN 61076-2-101) and housing made of impact-resistant plastic with quick-locking screws, optionally with⁄without display.
The devices measure the relative humidity and⁄or the temperature of the air and convert the measured variables into a standard signal of 0-10 V or 4...20 mA. They have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for precise humidity measurement. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The devices measure the relative humidity and⁄or the temperature of the air and convert the measured variables into a standard signal of 0-10 V or 4...20 mA. They have four switchable temperature ranges and are used in non-aggressive, dust-free environments, in refrigeration, air conditioning, ventilation and clean room technology. The transmitters are designed for precise humidity measurement. A digital, long-term stable sensor is used as the humidity measuring element. The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measurement | Temperature, relative humidity |
| Power supply | 15...36 V DC depending on the installation condition, ripple stabilized at ± 0.3 V |
| Output | 4..20 mA |
| Display | No |
| Output variant | Cable gland |
| Measuring quantity additionally to °C + %RH | + °C |
| Features | Sinter filter, plastic |
| Output | 4...20 mA |
| Sensor humidity tolerance | 2 % |
