Outdoor temperature sensor / humid room temperature sensor THERMASGARD® ATF1 Pt1000A
THERMASGARD® ATF1 Pt1000A
SKU 1101-1040-6003-000
EAN 4 251325 600284
Product group: WG03
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
26,16 €
Regular price
Sale price
26,16 €
Entrega en 3 días a España
5 años de garantía
Solicitar descuento por volumen
Product description
- Passive
- –50...+90 °C
- 4-wire connection
- IP65, IP67

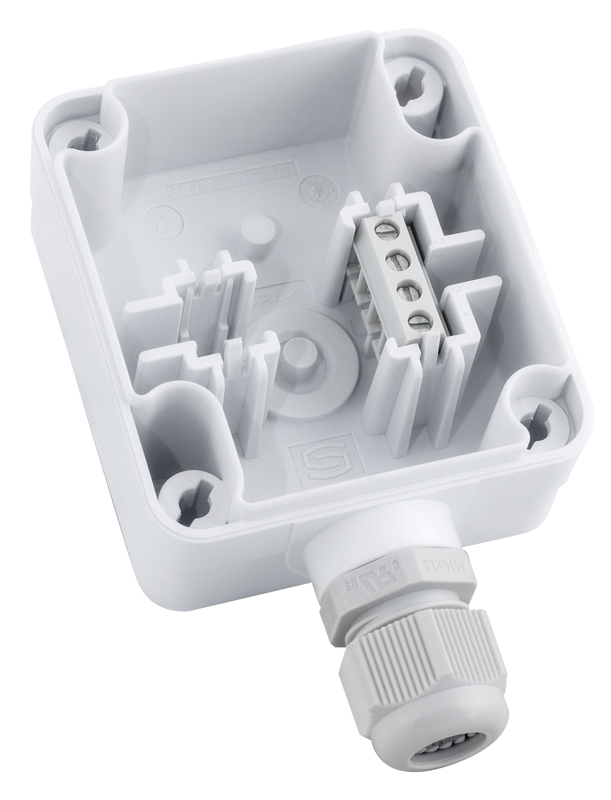

External wall resistance thermometer/ weather sensor THERMASGARD® ATF 1 (internal sensor) with passive output, with housing made of impact-resistant plastic and quick-locking screws. External wall resistance thermometer/ weather sensor THERMASGARD® ATF 01 (internal sensor) with passive output, with housing made of impact-resistant plastic and snap-on cover.
It is used to record the outdoor temperature, the temperature in damp areas, e.g. as an outdoor sensor, weather sensor, for mounting on external walls, in cold stores and greenhouses, in halls, in industrial areas and in agriculture. In outdoor areas, the temperature sensor is preferably installed on the north side or in a protected location. In direct sunlight, the WS 01 or WS 04 sunshade must be used.
It is used to record the outdoor temperature, the temperature in damp areas, e.g. as an outdoor sensor, weather sensor, for mounting on external walls, in cold stores and greenhouses, in halls, in industrial areas and in agriculture. In outdoor areas, the temperature sensor is preferably installed on the north side or in a protected location. In direct sunlight, the WS 01 or WS 04 sunshade must be used.
Technical data
| Sensor | PT1000A |
| Function type | Measurement temperature |
| Measured variables | Temperature, passive temperature |
| Display | No |
| IP protection class | IP67 |
| Output variant | Cable gland |
| Housing | Tyr 1 |
| Measuring range | –50...+90 °C |
