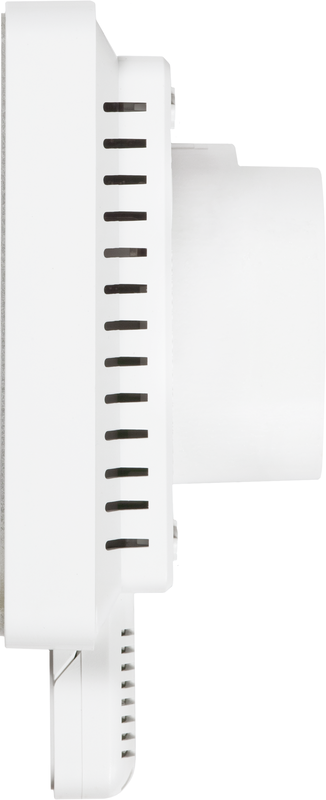

WIRELESS room controller (controller) RYMASKON® RYM 1432C-RH-CO2-WMOD

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms, and individually control the heating, cooling and fan stages of the interior space. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-position control. The product family stands out for its elegant design, intuitive operation and the many combination options of the individual components.
The room control devices Rymaskon® 1000 C (controller) are used to actuate and control heating fan convectors and fan convectors (fan coil). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for controlling heating valves, cooling valves, 6-way valves, staged dampers or EC dampers. Actuation is performed via PI, PWM or 2-/3-position control. With the changeover function, 2-pipe and 4-pipe systems can be operated.
The Modbus communication interface or W-Modbus enables the HVAC parameters to be changed and monitored on the controller at any time via the BMS (GLT). In addition, the functions solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled via the bus. The optical display is provided by a 2" TFT display, and operation is via capacitive buttons (touchkeys).

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. There is also an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact. For example, a window contact or a condensation monitor can be connected. This means all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is done on standard flush-mounting boxes.
