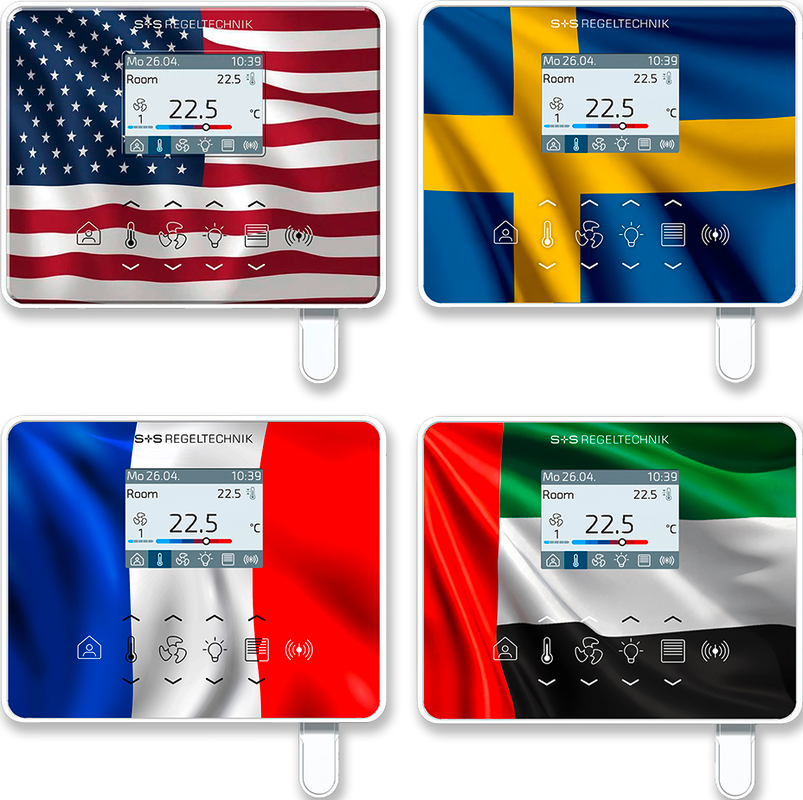

Room operating unit (interface) RYMASKON® RYM 1301-RH-VOC-MOD

The room control units of the series Rymaskon® 1000 are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by an elegant design, intuitive operation, and the many possible combinations of the individual components.

The room control units Rymaskon® 1000 (interface) are used to control temperature, fan, sun protection (roller shutters, blinds) or lighting (with dimming function). The room control units provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the building automation system (GLT). Visual indication is provided via a 2" TFT display; operation is via capacitive keys (touch keys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input is provided for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available for flexibly and individually climate-controlling the rooms.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is on standard flush-mount boxes or surface-mount.
