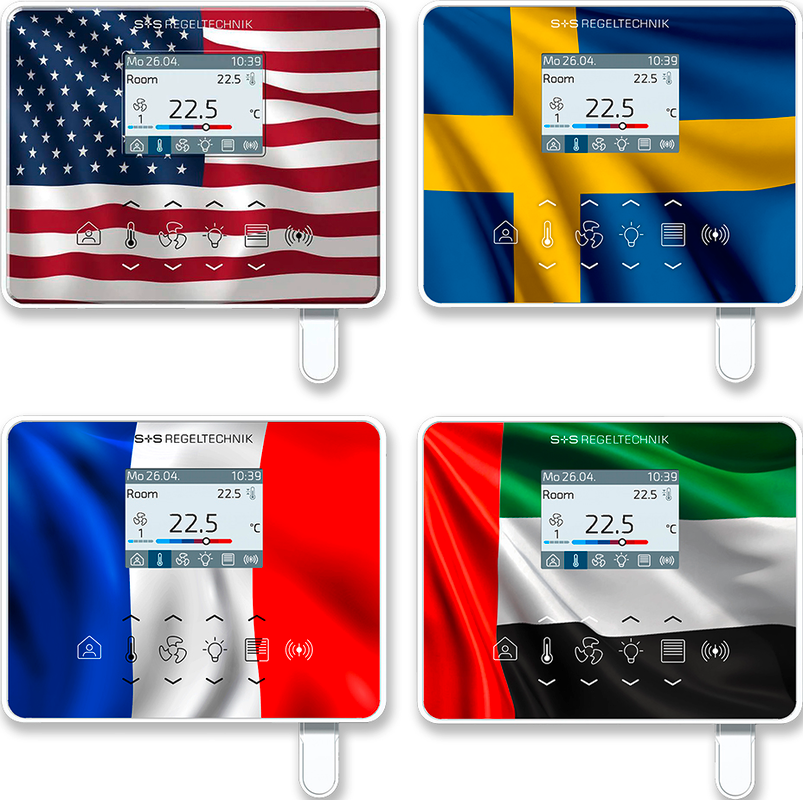

WIRELESS room operating unit (interface) RYMASKON® RYM 1401-RH-CO2-VOC-WMOD-L

The room controllers of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM or 2-/3-point control. The product family stands out for its elegant design, intuitive operation and the many combination options of the individual components.

The room controllers Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (retractable awnings, blinds) or lighting (with dimming function). The room controllers provide the setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus from the BMS. The optical display is provided by a 2" TFT display, and operation is via capacitive buttons (Touchkeys).
In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are available as options. Furthermore, an input is available for a passive temperature sensor (NTC10K) and an input for a potential-free contact. This enables, for example, a window contact or a condensation monitor to be connected. This ensures that all possibilities are available to climate-control rooms flexibly and individually.
All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors white or black. Wall mounting is possible on standard flush-mounting boxes or surface-mounting boxes.
