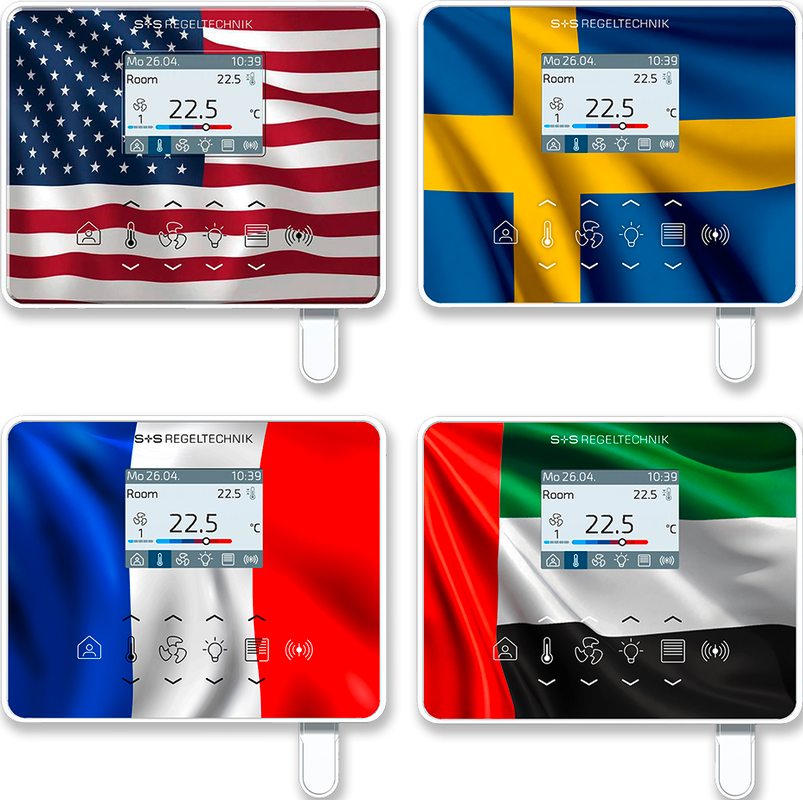

WIRELESS room operating unit (interface) RYMASKON® RYM 1402-RH-VOC-WMOD

The room control units of the Rymaskon® 1000 series are designed for controlling (up to 2 heating/cooling zones) in residential, hotel and office rooms, and individually control the indoor heating, cooling and fan stages. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the versatile combination options of the individual components.

The room control units Rymaskon® 1000 (interface) are used for controlling temperature, fan, solar protection (roller shutters, blinds) or lighting (with dimming function). The room control units provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. The optical indication is provided by a 2" TFT display, with operation via capacitive keys (Touchkeys).
In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This allows, for example, a window contact or a condensation switch to be connected. This means all options are available to flexibly and individually climate-control the rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is on standard flush-mounting boxes or surface-mounting boxes.
