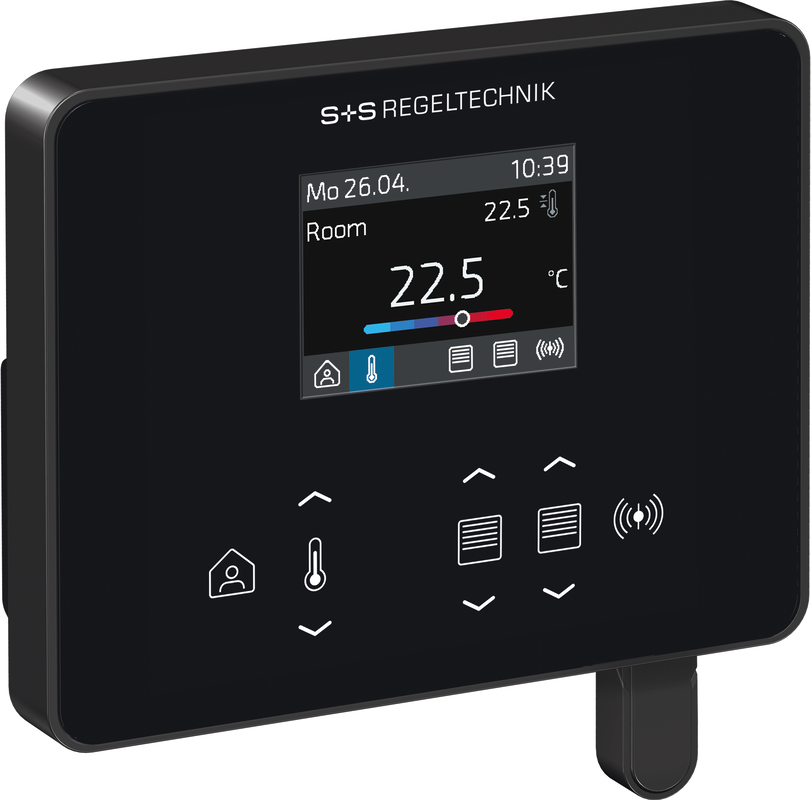

WIRELESS room controller (controller) RYMASKON® RYM 1312C-RH-WMOD-BB

The room control devices of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone devices using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many combination options of the individual components.
The room control devices Rymaskon® 1000 C (controllers) are used for actuation and control of heating fan coils and cooling fan coils (fan coils). Depending on the type variant, the devices are available with analog outputs (0 -10 V) as well as with digital / relay outputs, for actuating heating valves, cooling valves, 6-way valves, staged dampers or EC dampers. Actuation is performed via PI, PWM or 2-/3-point control. With the changeover function, 2-pipe and 4-pipe systems can be operated.

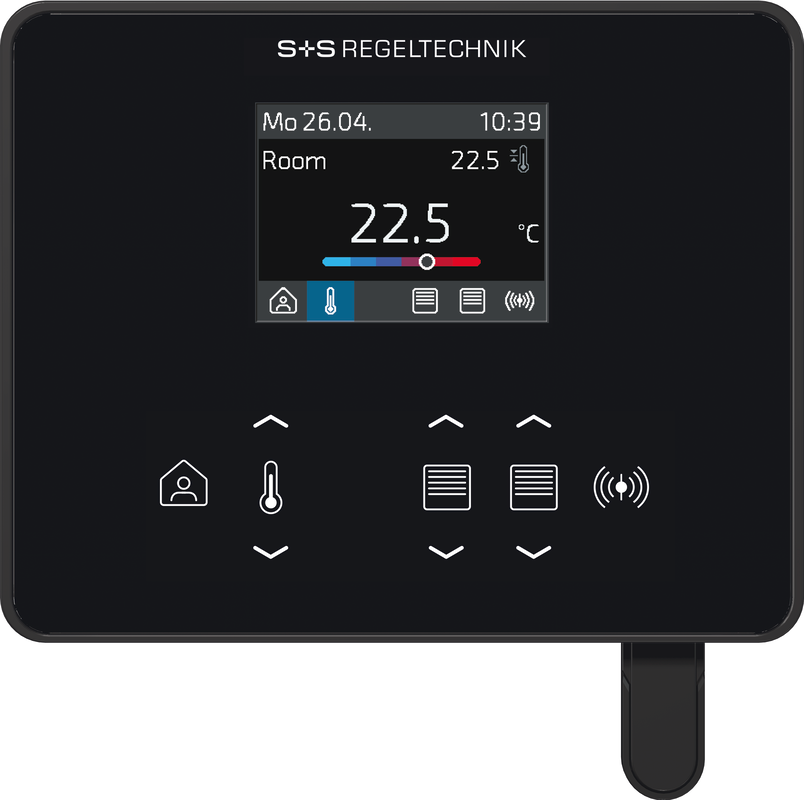

The Modbus communication interface or W-Modbus enables the HVAC parameters to be changed and monitored on the controller at any time via the BMS. In addition, functions for solar shading (roller shutters, blinds) or lighting (with dimming function) can be controlled over the bus. The optical display is provided via a 2" TFT display, and operation is via capacitive buttons (touchkeys).

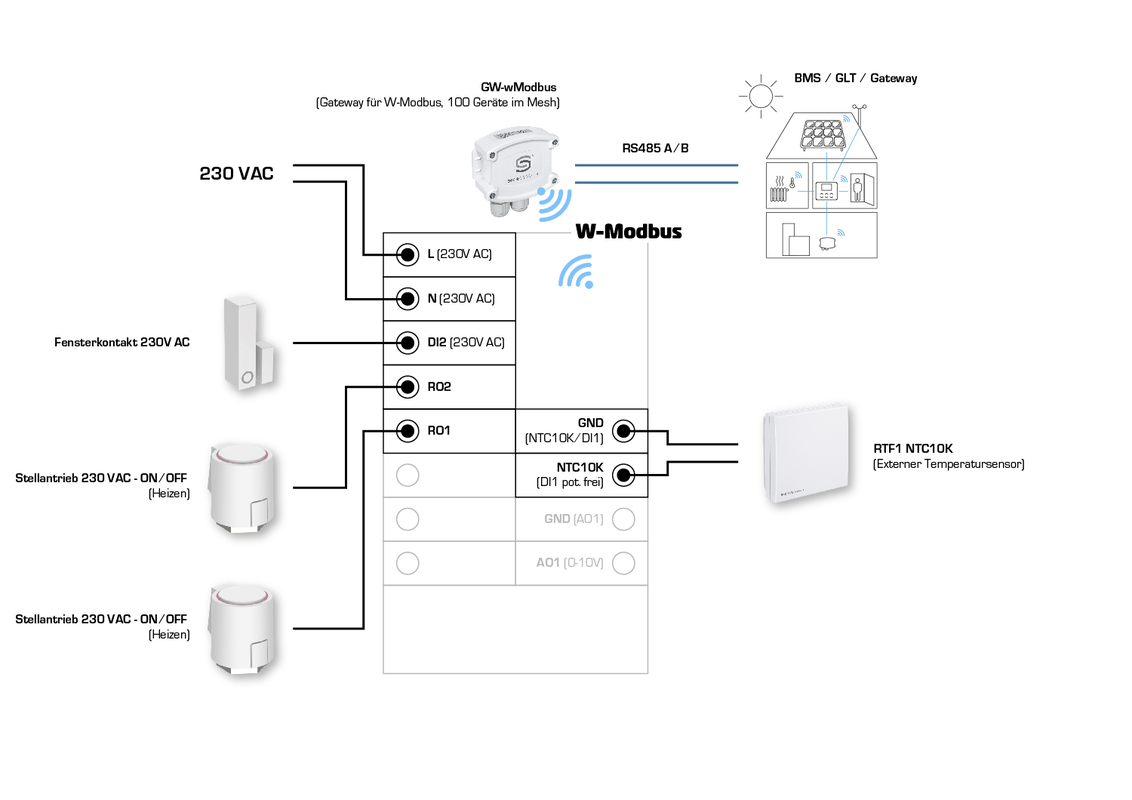

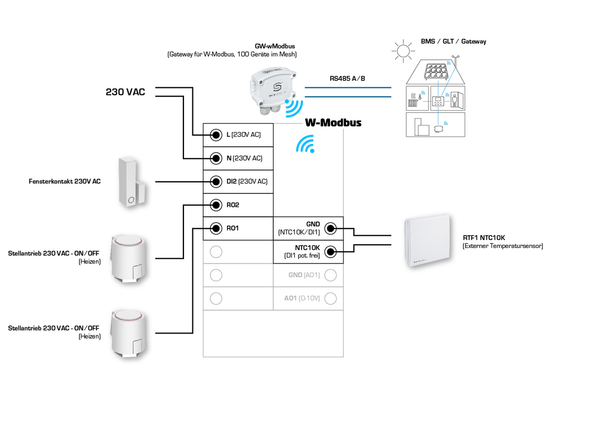

In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation switch. As a result, all options are available to flexibly and individually condition rooms.

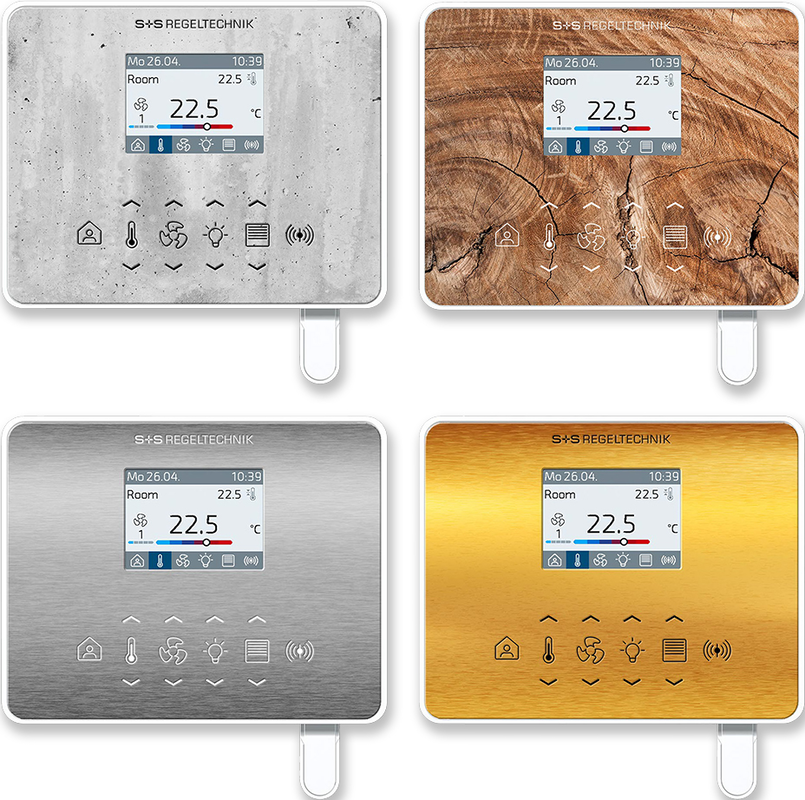

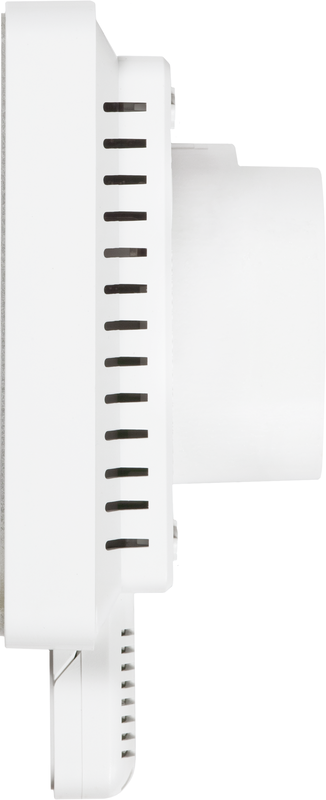

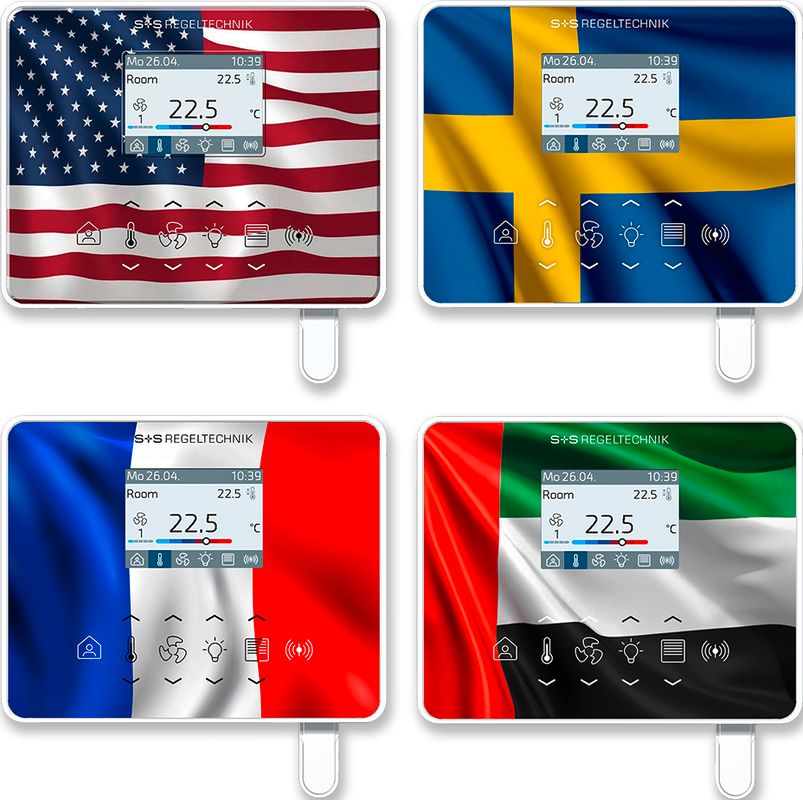

All device types are available in the timeless Iduna 3 enclosure (112 x 89.5 x 24 mm) in the colors White or Black. Wall mounting is done on standard flush-mount wall boxes.
