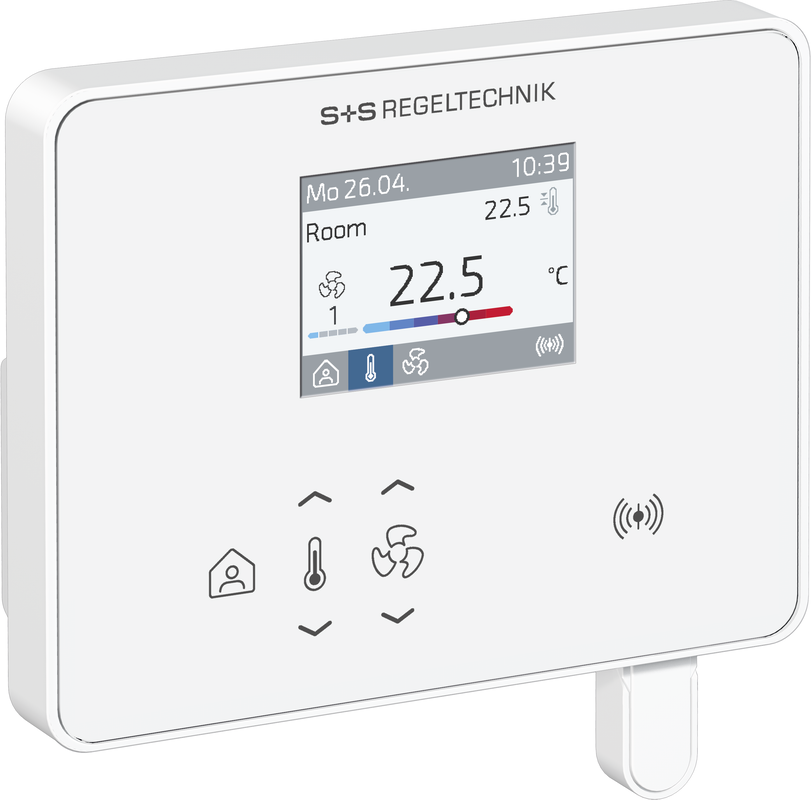

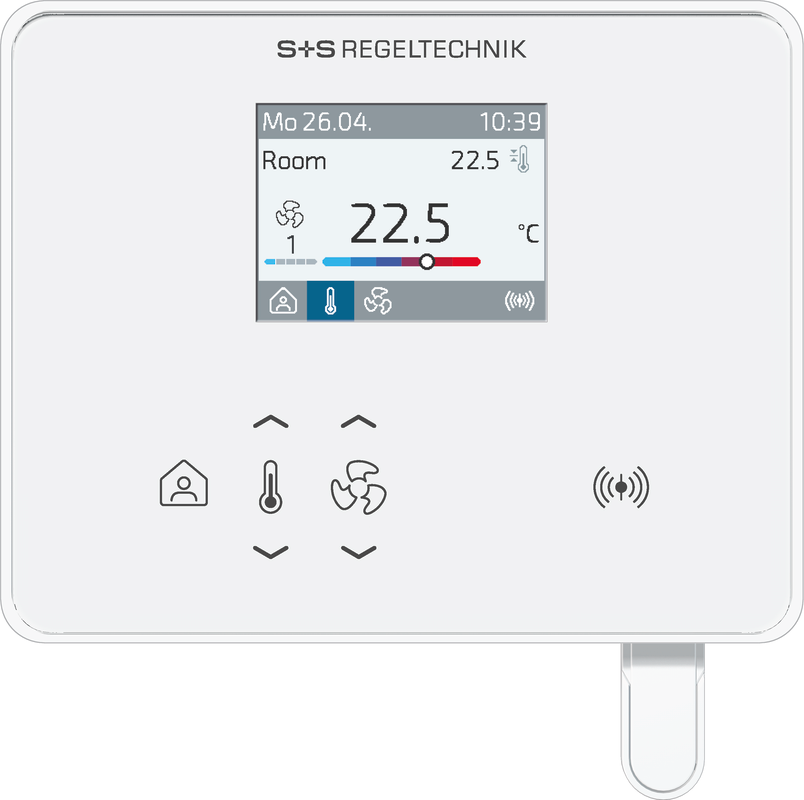

Room operating unit (interface) RYMASKON® RYM 1401-RH-CO2-MOD-AP

The room controllers of the Rymaskon® 1000 series are designed for controlling (up to 2 HVAC zones) in residential, hotel, and office rooms and individually regulate the heating, cooling, and fan stages of the interior. The controller variants can be operated as stand-alone devices via the integrated control functions PI, PWM, or 2-/3-point control. The product family is characterized by its refined design, intuitive operation, and the many combination options of the individual components.

The room controllers Rymaskon® 1000 (interface) are used to control temperature, fan, solar shading (roll-down shutters, blinds) or light (with dimming function). The room controllers provide the setpoints either via conventionally wired Modbus or via the wireless, radio-based W-Modbus of the BMS. The optical display is provided by a 2" TFT display; operation is via capacitive keys (Touchkeys).

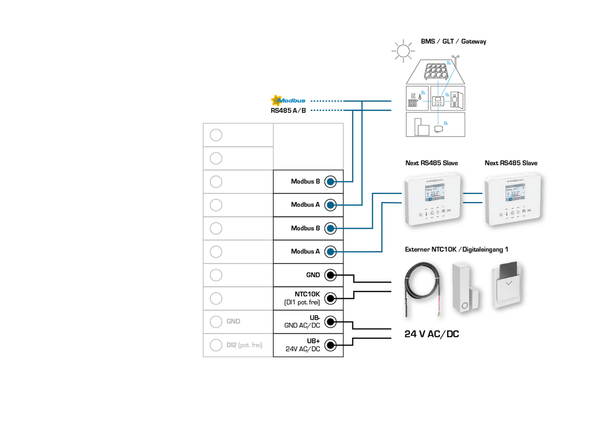

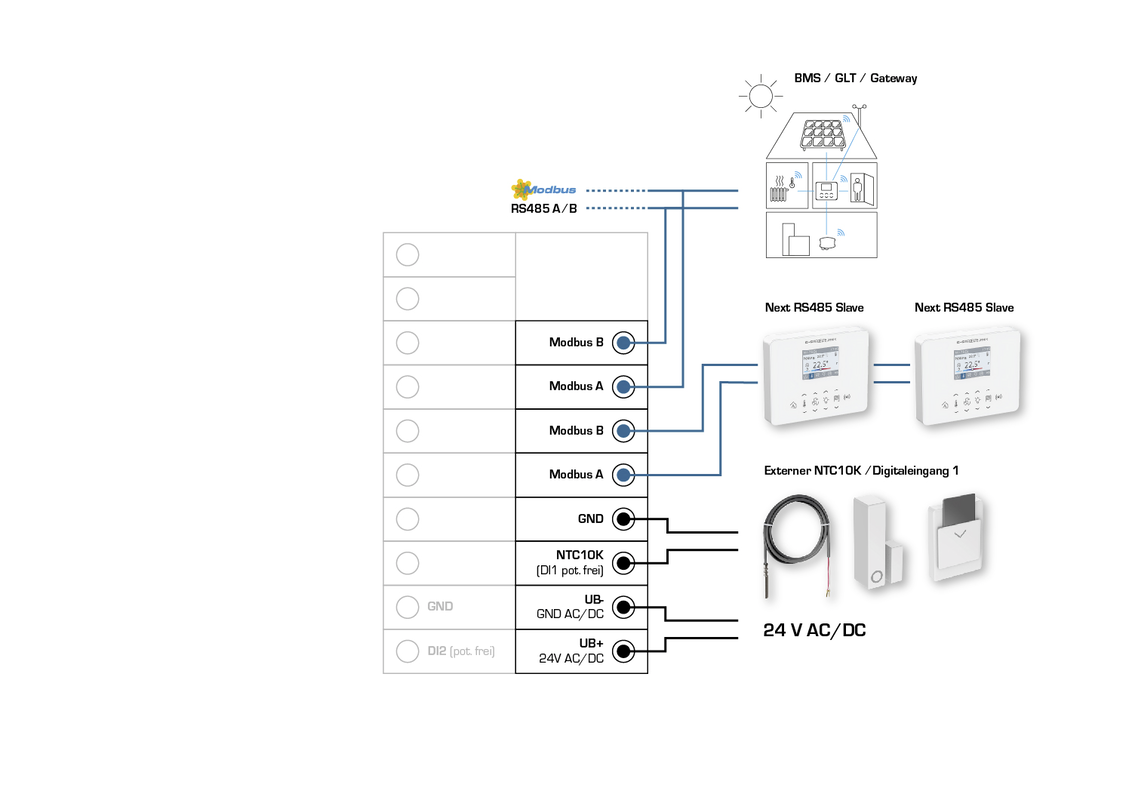

In addition to the integrated temperature and humidity sensor, optional sensors for CO2 and VOC are available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are provided. This makes it possible, for example, to connect a window contact or a condensation monitor. This ensures that all options are available to climate the rooms flexibly and individually.

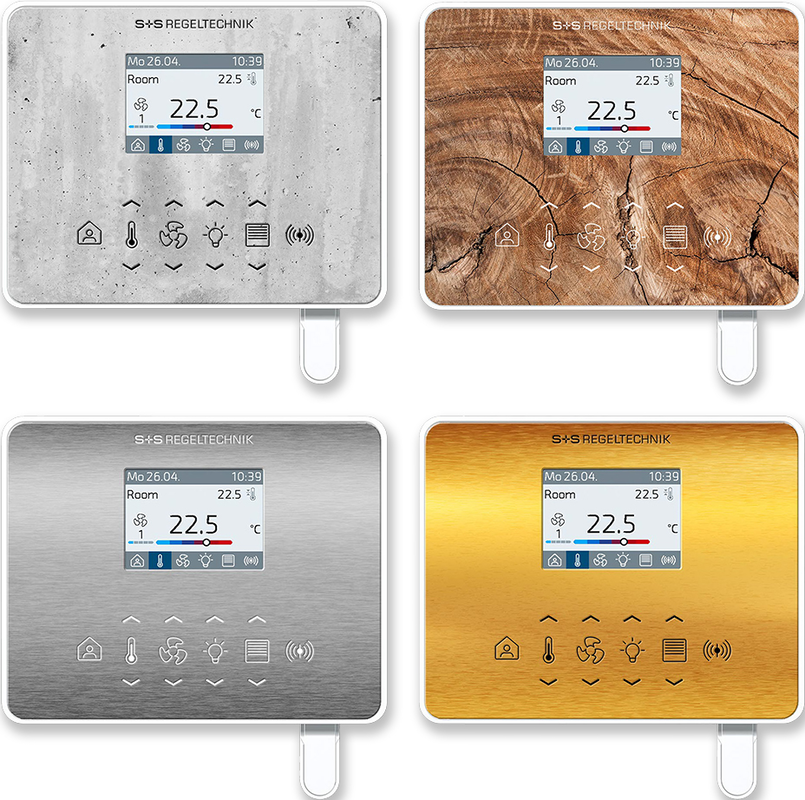

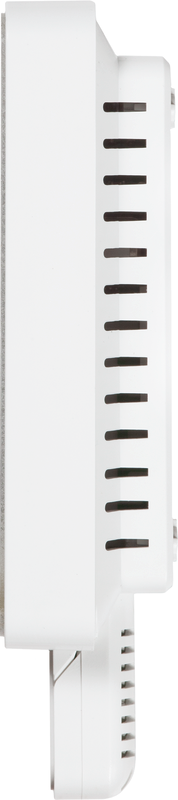

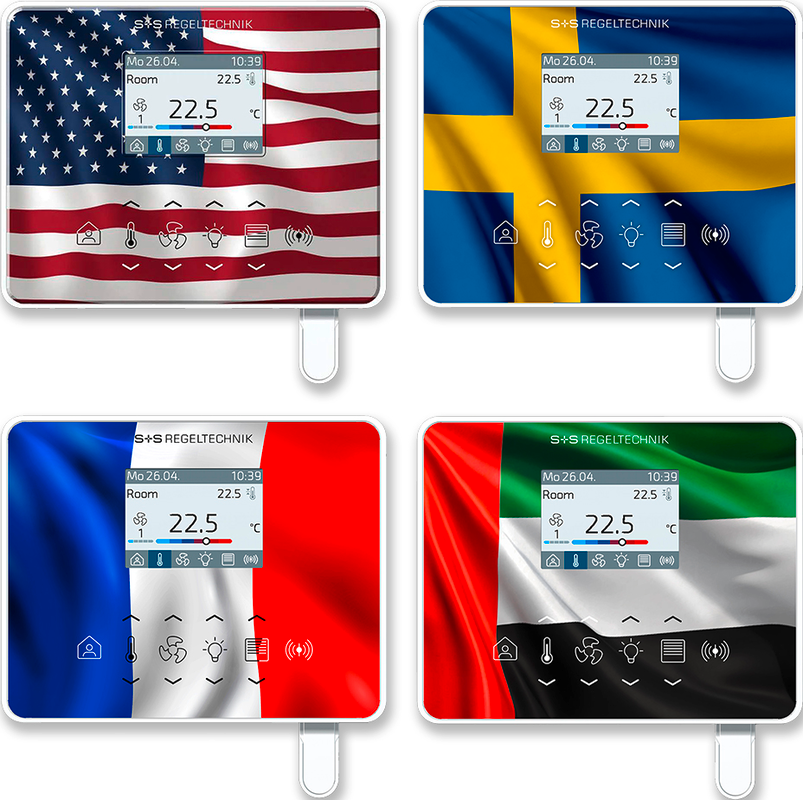

All device types are available in the timeless housing Iduna 3 (112 x 89.5 x 24 mm) in white or black. Wall mounting is carried out on standard flush-mounted boxes or surface-mounted boxes.
