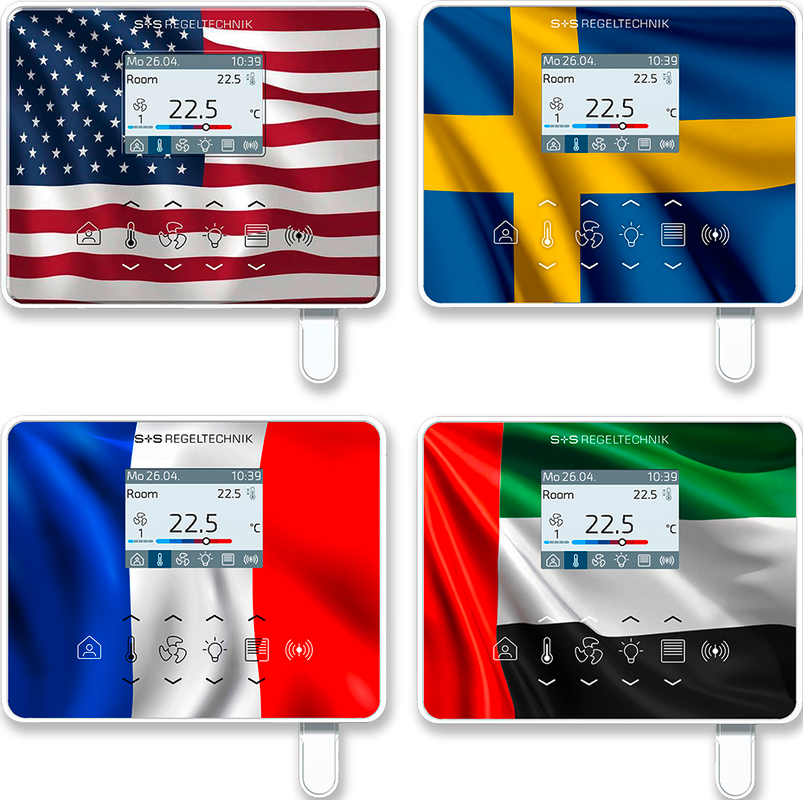

Room operating unit (interface) RYMASKON® RYM 1401-RH-CO2-MOD

The room control devices of the Rymaskon® 1000 series are designed to control (up to 2 HVAC zones) living, hotel and office rooms and individually regulate the heating, cooling and fan stages of the interior. The controller variants can be operated as stand-alone units using the integrated control functions PI, PWM or 2-/3-point control. The product family is characterized by its elegant design, intuitive operation and the many possible combinations of the individual components.

The room control devices Rymaskon® 1000 (interface) are used for controlling temperature, fan, solar shading (roller shutters, venetian blinds) or lighting (with dimming function). The room control devices provide setpoints either via conventional wired Modbus or via the wireless, radio-based W-Modbus of the BMS. The optical indication is provided by a 2" TFT display, with operation via capacitive keys (Touchkeys).
In addition to the integrated temperature and humidity sensor, sensors for CO2 and VOC are optionally available. Furthermore, an input for a passive temperature sensor (NTC10K) and an input for a potential-free contact are available. This allows, for example, a window contact or a condensation monitor to be connected. This provides all options for flexibly and individually climate-controlling rooms.
All device types are available in the timeless Iduna 3 housing (112 x 89.5 x 24 mm) in white or black. Wall mounting is possible on standard flush-mounted back boxes or surface-mounted boxes.
