Contact temperature sensor / pipe contact transmitter THERMASGARD® ALTM2-SD-U

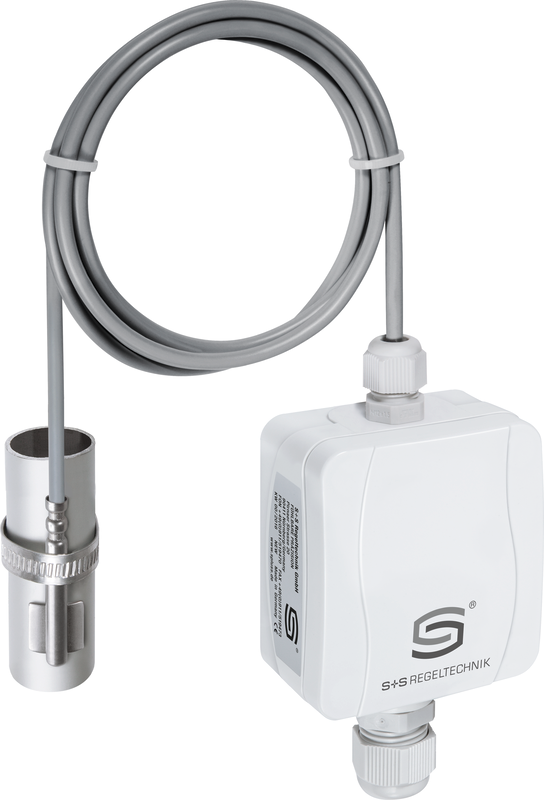

THERMASGARD® ALTM2-SD-U
SKU 1101-6151-0219-920
EAN 4 251325 615721
Product group: WG01B
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
91,96 €
Regular price
Sale price
91,96 €
Entrega en 3 días a España
5 años de garantía
Solicitar descuento por volumen
Product description
- - 20...+ 150 °C / - 50... + 50 °C / - 20... + 80 °C / - 30... + 60 °C / 0... + 40 °C / 0... + 50 °C (default) / 0...+ 100 °C / 0...+ 150 °C
- typically ± 0.2 K at +25 °C
- 0-10V
- Cable gland
- IP54
Calibratable THERMASGARD® ALTM 2 pipe contact temperature measuring transducer with eight switchable measuring ranges, external sensor, continuous output, impact-resistant plastic housing with quick-locking screws, optionally with/without display, with cable gland or M12 plug connector to DIN EN 61076-2-101.
The contact sensor is used to measure the temperature on pipes (e.g. cold and hot water) or on heating pipes for heating control.
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
The contact sensor is used to measure the temperature on pipes (e.g. cold and hot water) or on heating pipes for heating control.
The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
Technical data
| Measurement | Temperature |
| Communication | - |
| Power supply | 24 V AC/DC (± 10 %) |
| Cable length | 1.5 m |
| Display | No |
| Protection rating | IP54 |
| Output version | Cable gland |
| Measuring range | –20...+150 °C / –50... +50 °C / –20...+80 °C / –30... +60 °C / 0...+40 °C / 0...+50 °C (default) / 0...+100 °C / 0...+150 °C |
| Cable connection | Cable gland |
| Equipment | none |
