°C
Contact temperature sensor / pipe contact sensor THERMASGARD® ALTF2 NiTK
THERMASGARD® ALTF2 NiTK
SKU 1101-1021-0001-000
EAN 4 251325 600130
Product group: WG03
In stock
, available in 1-3 working days
Shipping calculated at checkout.
Regular price
32,97 €
Regular price
Sale price
32,97 €
Entrega en 3 días a España
5 años de garantía
Solicitar descuento por volumen
Product description
- passive
- -30...+110 °C
- 2-wire connection
- IP65

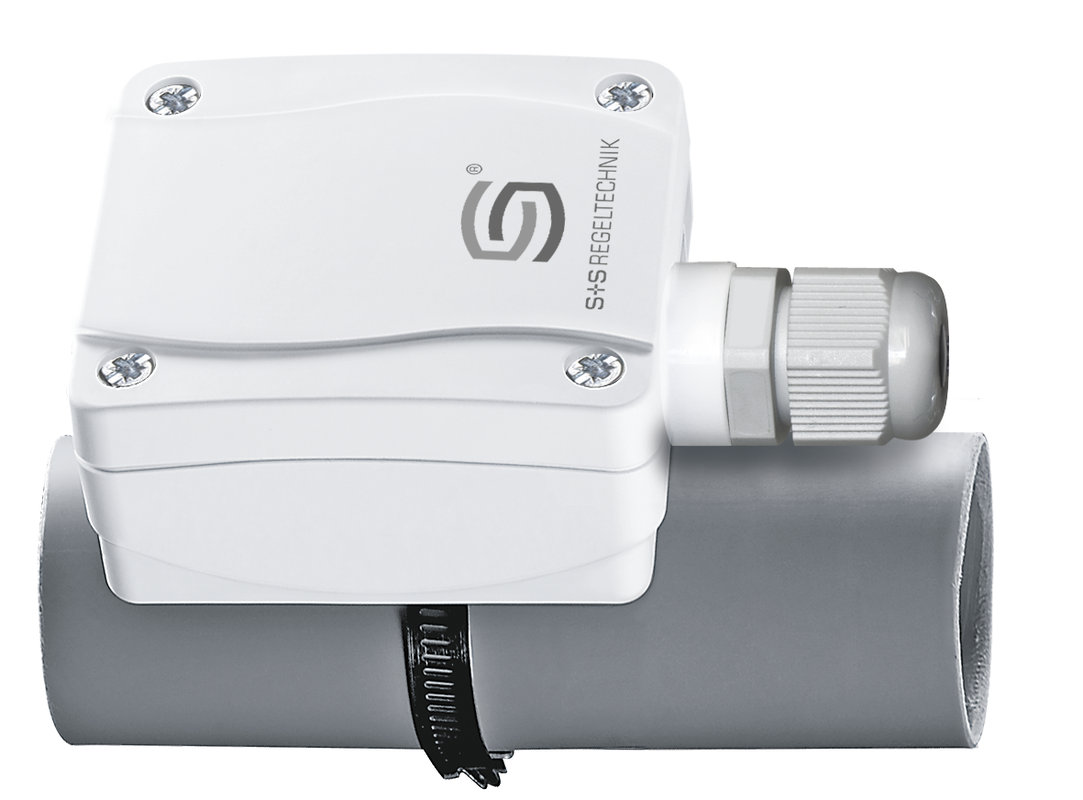

The THERMASGARD® ALTF 2 is a pipe contact resistance thermometer with passive output, in an impact-resistant plastic housing with quick-locking screws, incl. clamping strap.
The THERMASGARD® ALTF 02 is a low-cost tube contact resistance thermometer with passive output, in an impact-resistant plastic housing with snap-on cover, incl. clamping strap.
The contact sensors are electrical contact thermometers that are used to measure the surface temperature of solid bodies and have at least one so-called contact surface or contact area that is brought into contact with the surface to be measured. The sensor uses the surface temperature to determine the temperature of the medium flowing in the pipe (e.g. the water temperature). The pipe sensor is used to measure the temperature of lines, pipes (e.g. cold and hot water) or heating pipes for heating control.
The THERMASGARD® ALTF 02 is a low-cost tube contact resistance thermometer with passive output, in an impact-resistant plastic housing with snap-on cover, incl. clamping strap.
The contact sensors are electrical contact thermometers that are used to measure the surface temperature of solid bodies and have at least one so-called contact surface or contact area that is brought into contact with the surface to be measured. The sensor uses the surface temperature to determine the temperature of the medium flowing in the pipe (e.g. the water temperature). The pipe sensor is used to measure the temperature of lines, pipes (e.g. cold and hot water) or heating pipes for heating control.
Technical data
| Sensor | NI1000TK5000 |
| Function type | Measurement of temperature |
| Measured variables | Temperature, passive temperature |
| Display | No |
| IP protection class | IP65 |
| Output variant | Cable gland fitting |
| Housing | Tyr 1 |
| Measuring range | -30...+110 °C |
